Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Input oil-pressure characteristics received backup in new TCM.

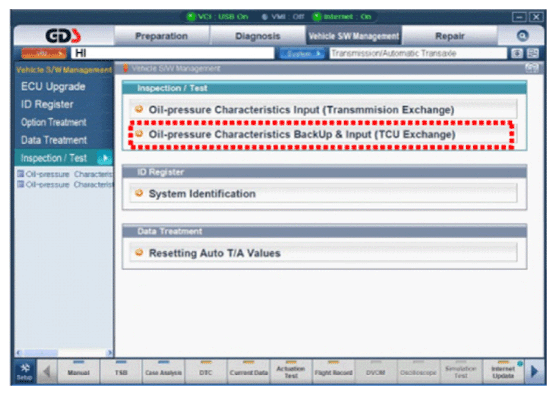

    G13551623Courtesy of HYUNDAI MOTOR AMERICA

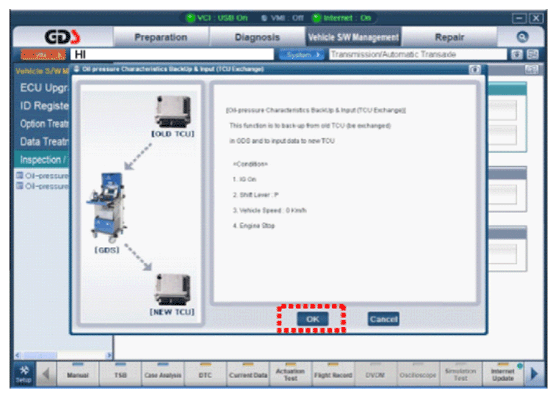

    G13551624Courtesy of HYUNDAI MOTOR AMERICA

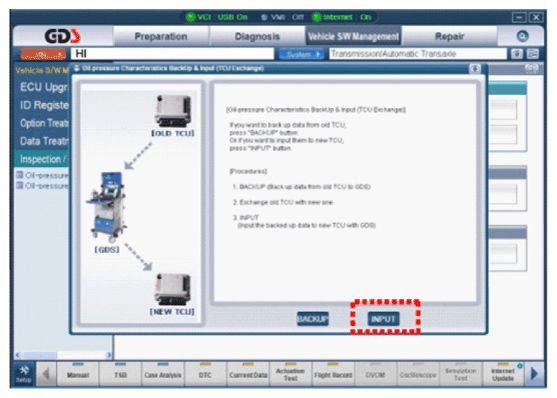

    G13551625Courtesy of HYUNDAI MOTOR AMERICA

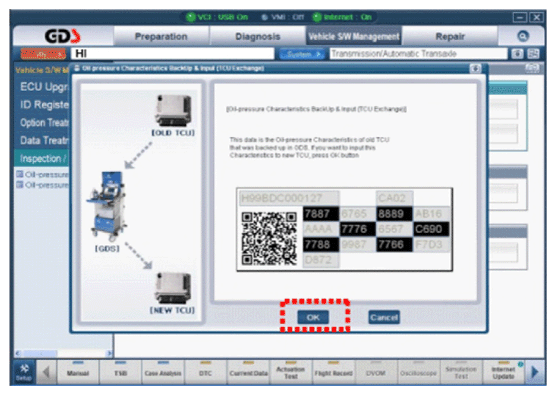

    G13551626Courtesy of HYUNDAI MOTOR AMERICA

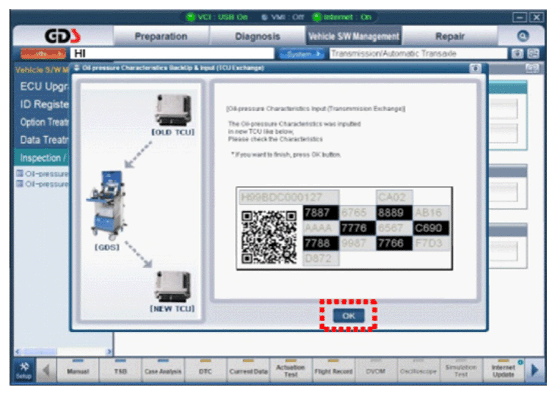

    G13551627Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "TCM LEARNING ")
