Components And Components Location: Components

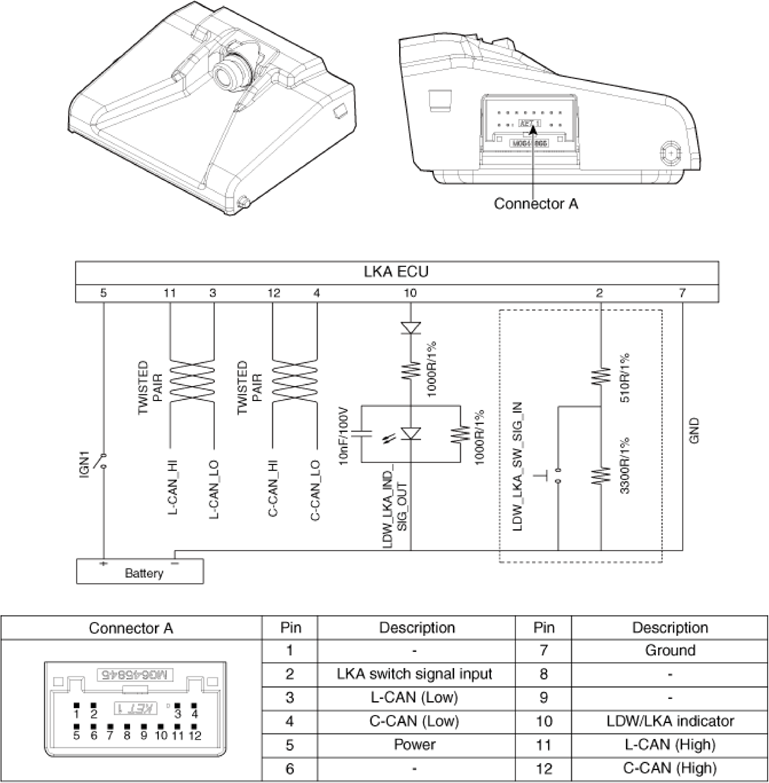

Fig 1: Front View Camera Connector End View And Terminal Description
G14178256Courtesy of HYUNDAI MOTOR AMERICA
