Components And Components Location: Components

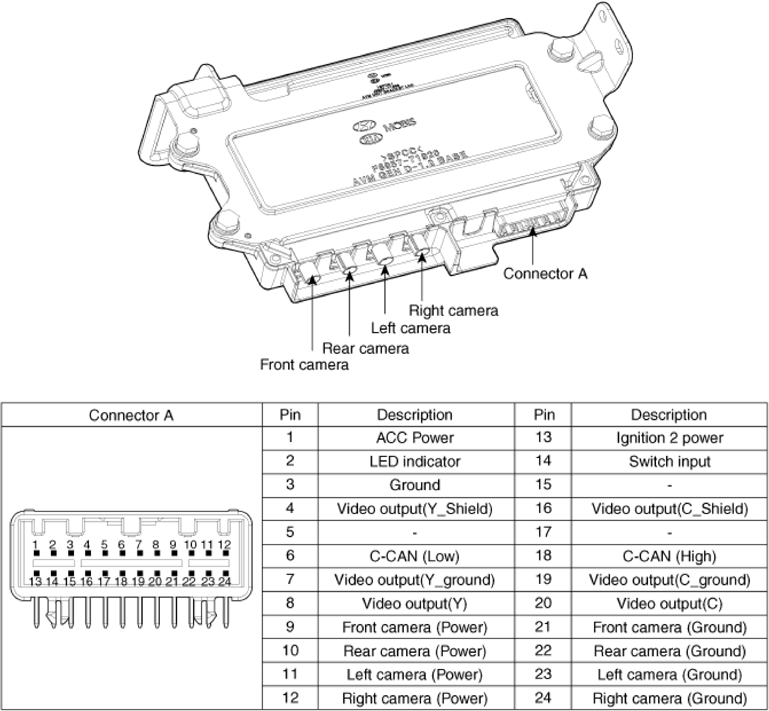

Fig 1: Surround View Monitoring Unit Connector End View And Terminal Description
G14178276Courtesy of HYUNDAI MOTOR AMERICA
G14178277Courtesy of HYUNDAI MOTOR AMERICA
