Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover RH.

    (Refer to Body - "CRASH PAD UNDER COVER ")

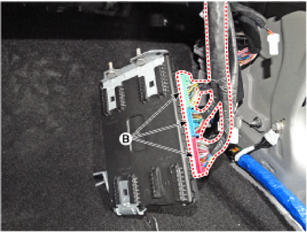

  3. Disconnect the connector (B) and then remove the IBU after loosening the mounting nuts.
    G14177816Courtesy of HYUNDAI MOTOR AMERICA
    G14177817Courtesy of HYUNDAI MOTOR AMERICA
