Trunk Rid Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk trim.

    (Refer to body - "TRUNK TRIM ")

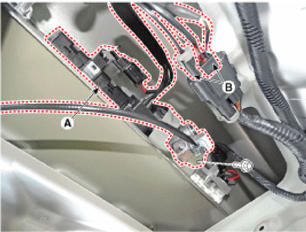

  3. Disconnect the connector (B) and then Remove the trunk rid switch (A) by separating the fixed hook.
    G14177744Courtesy of HYUNDAI MOTOR AMERICA

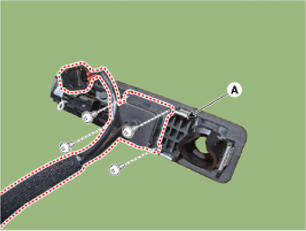

  4. Disconnect the connector and then remove the switch (A).
    G14177745Courtesy of HYUNDAI MOTOR AMERICA
