Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to "FRONT SEAT ")

  3. Remove the front seat under cover.

    (Refer to "FRONT SEAT ")

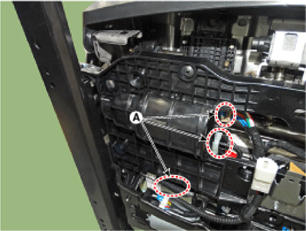

  4. Disconnect the power seat module connector (A).
    G14177836Courtesy of HYUNDAI MOTOR AMERICA

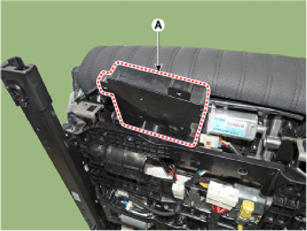

  5. Remove the power seat module (A) after loosening the screws.
    G14177837Courtesy of HYUNDAI MOTOR AMERICA
