Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

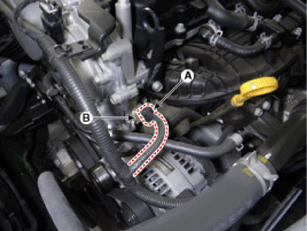

  2. Disconnect the oil temperature sensor connector (A).
  3. Remove the oil temperature sensor (B).
    G14175624Courtesy of HYUNDAI MOTOR AMERICA
