Bank 1/Sensor 1

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

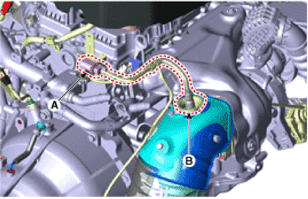

  2. Disconnect the connector (A), and then remove the sensor (B).
    G14175610Courtesy of HYUNDAI MOTOR AMERICA
