Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

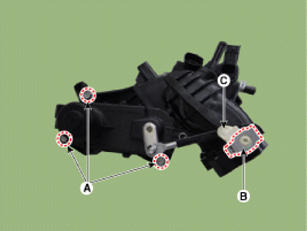

- Remove the variable charge motion actuator mounting bolts (A).
- Remove VCMA rod clip (B) and connection link between flap (C) using screwdriver.
