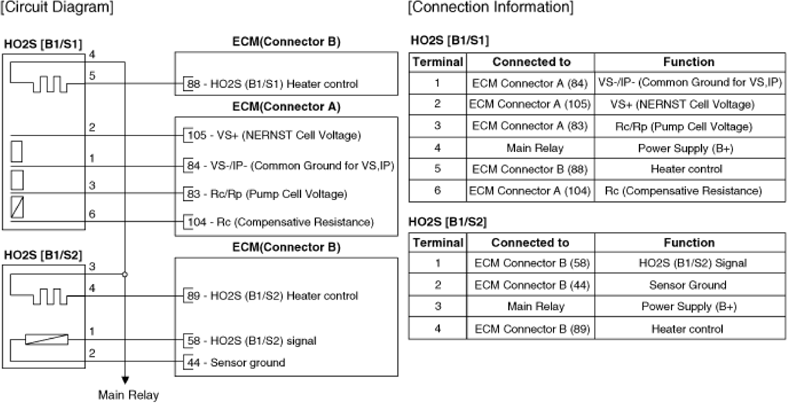

Home › Genesis › 2021 › G70 2.0T, RWD, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram › Notes
