Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

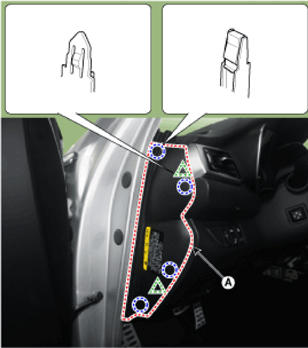

1. Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

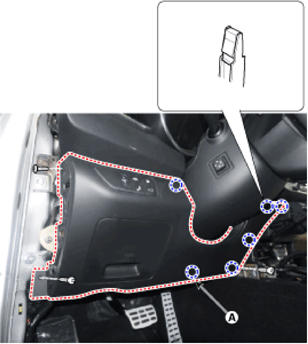

2. Loosen the mounting screws and remove the crash pad lower panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

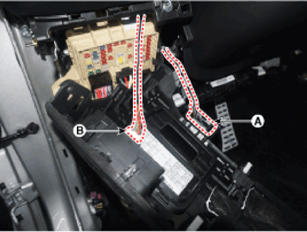

3. Disconnect the diagnosis connector (A) and lower panel switch connector (B).

   Courtesy of HYUNDAI MOTOR AMERICA

4. To install, reverse the removal procedure.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips (or pin-type retainers).
