Components And Components Location: Components

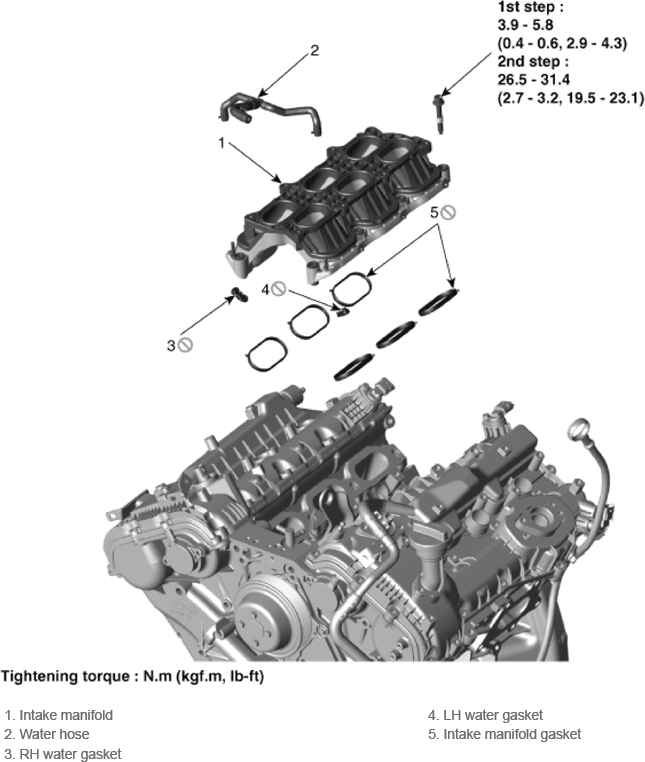

Fig 1: Intake Manifold Components Location With Torque Specification
G14178968Courtesy of HYUNDAI MOTOR AMERICA
