Components And Components Location: Components

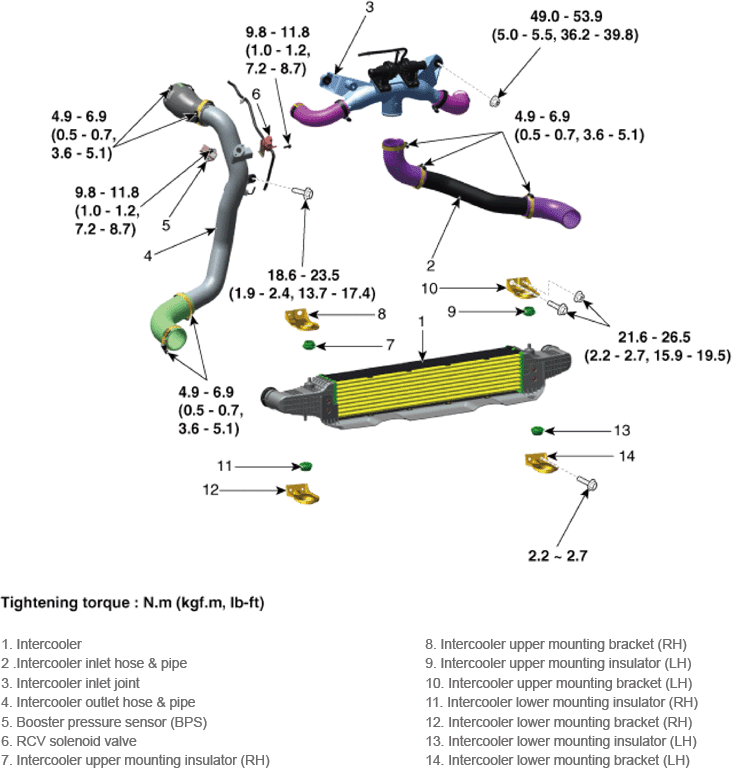

Fig 1: Intercooler Components Location With Torque Specifications
G14178960Courtesy of HYUNDAI MOTOR AMERICA
