Components And Components Location: Components

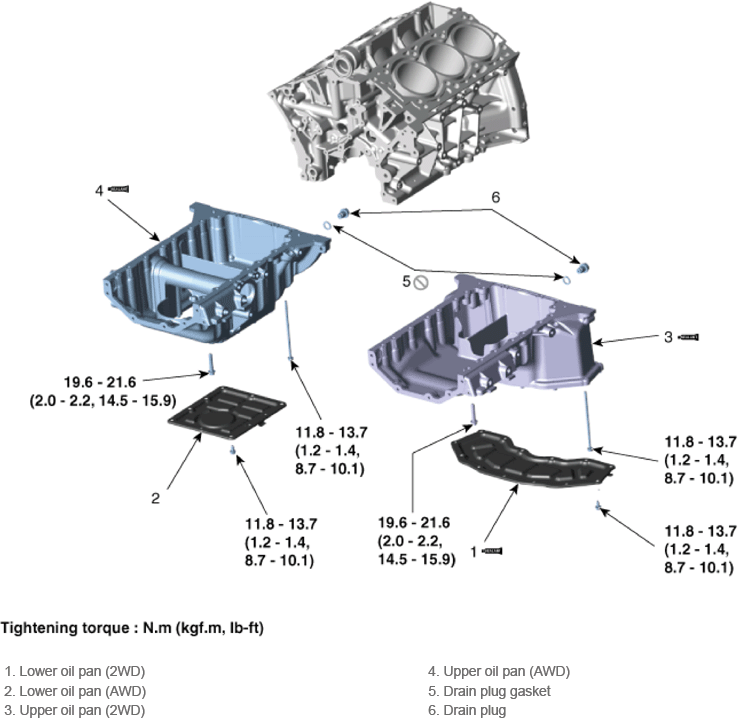

Fig 1: Oil Pan Components Location With Torque Specifications
G14178896Courtesy of HYUNDAI MOTOR AMERICA
