Bank 1

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the intake hose.

    (Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM ")

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the installation bolt (B), and then vertically remove the sensor from the cylinder head.

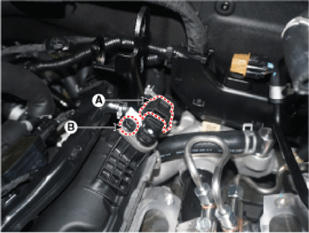

    [Bank 1/Intake]

    G14179257Courtesy of HYUNDAI MOTOR AMERICA

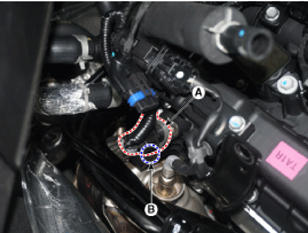

    [Bank 1/Exhaust]

    G14179258Courtesy of HYUNDAI MOTOR AMERICA
