Bank 2/Intake
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

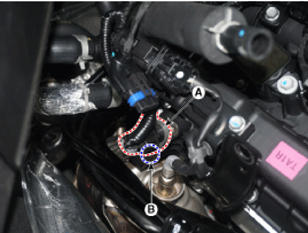

- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
