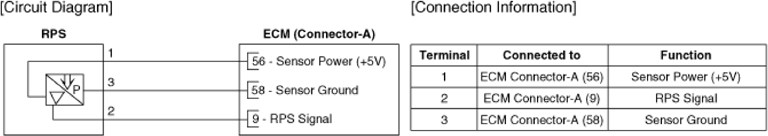

Home › Genesis › 2021 › G70 3.3T, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Rail Pressure Sensor (RPS) › Schematic Diagrams › Circuit Diagram › Notes
