Ignition System - 3.3L
›
Ignition Coil
›
Troubleshooting
›

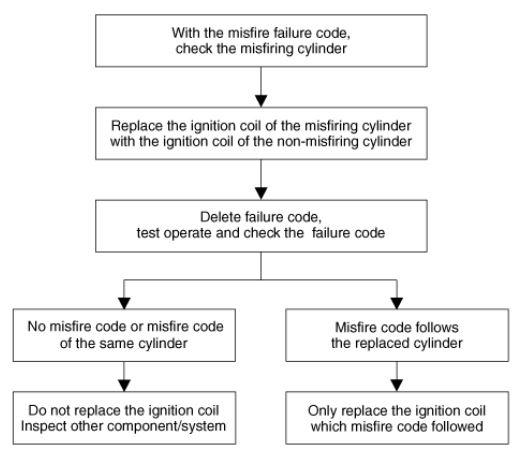

Test For Changing Position Of Each Ignition Coil
Test For Changing Position Of Each Ignition Coil
Ignition coil w/misfire code
Ignition coil w/o misfire code

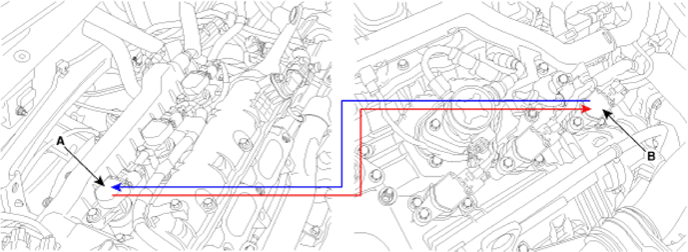

NOTE:
Do not move with spark plug at the same time (move the ignition coil only)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
