Steering Wheel Play Inspection

  1. Turn the steering wheel so that the front wheels are facing straight ahead.

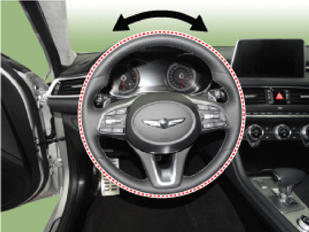

  2. Measure the distance that the steering wheel can be turned with out moving the front wheels.

    Standard value  : 0 - 30mm (1.1811in.) or less

    G14176706Courtesy of HYUNDAI MOTOR AMERICA
  3. If the play exceeds standard value, inspect the steering column, shaft, and linkages.
