Repair Procedures: Removal

  1. Remove the console upper cover using the screw driver and remover.

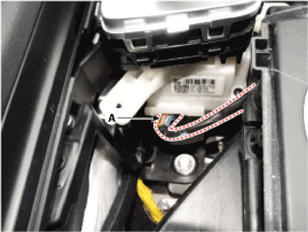

  2. Disconnect the shift lever main connector (A).
    G14179870Courtesy of HYUNDAI MOTOR AMERICA

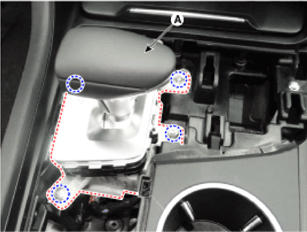

  3. Remove the E-shift lever mounting bolt and then removing the E-shift lever (A).
    G14179871Courtesy of HYUNDAI MOTOR AMERICA
