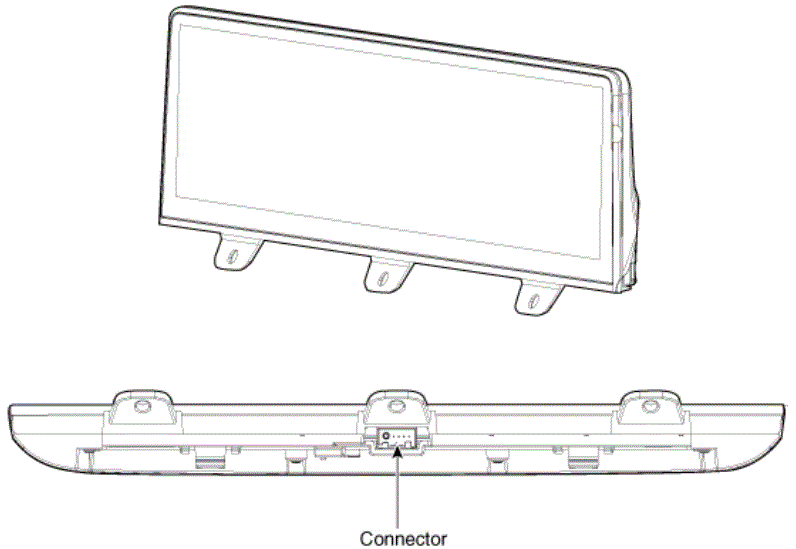

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

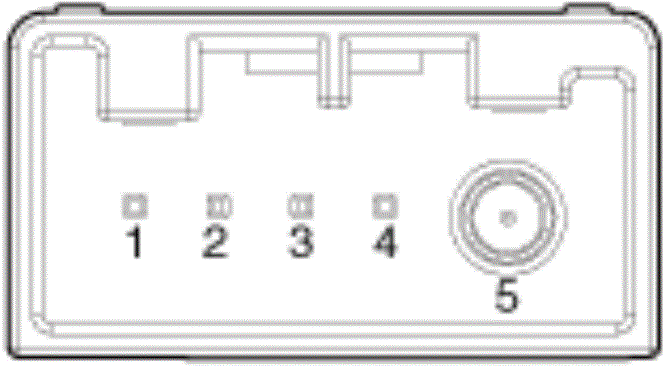

Connector	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Monitor Power
	2	-
	3	-
	4	Monitor Ground
	5	Front Monitor Video
