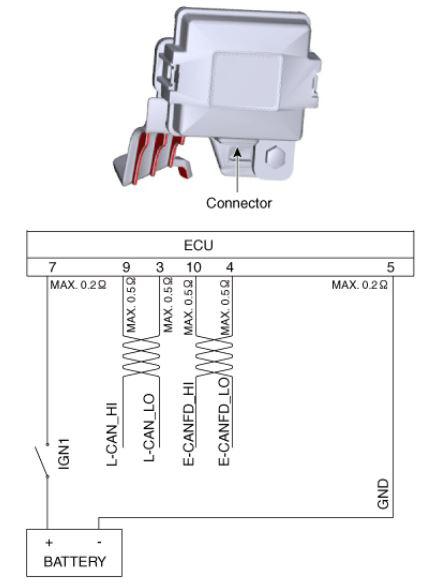

Components And Components Location

Courtesy of HYUNDAI MOTOR AMERICA

Connector	I NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	L-CAN (Low)
	4	E-CAN (Low)
	5	-
	6	Ground
	7	IGN 1
	8	-
	9	L-CAN (High)
	10	E-CANFD (High)
	11	-
	12	-
