Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

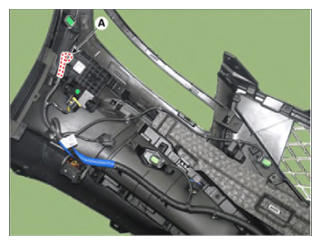

- Disconnect the front corner radar connector (A).

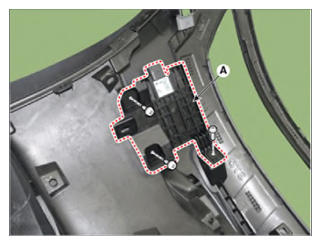

- Loosen the mounting screws and remove the Left/Right front corner radar (A).
Tightening torque: 3.5 - 5.7 N.m (0.36 - 0.58 kgf.m, 2.6 - 4.2 lb-ft)
Information
- Be careful not to damage the bracket when removing the front corner radar unit.

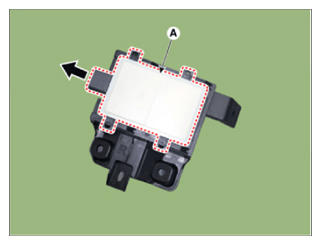

- When replacing the bracket, push the unit (A) in the direction of the arrow to remove the bracket.
