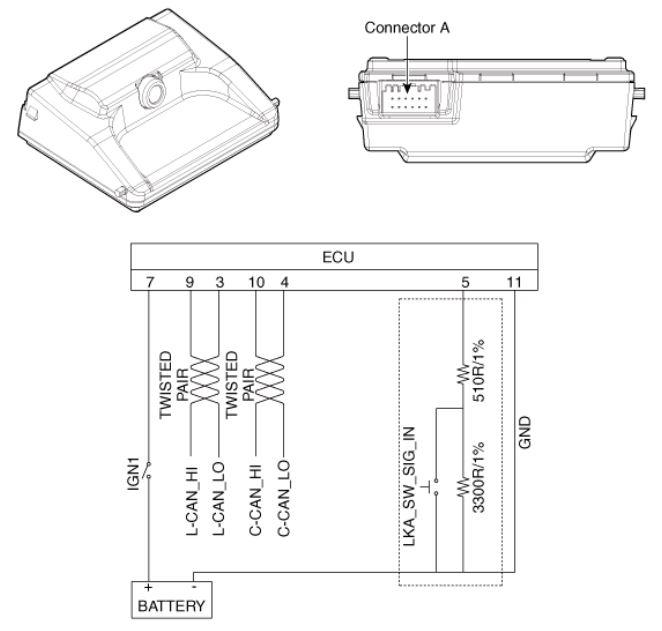

Circuit Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Connector A		Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	L-CAN (Low)
	4	C-CAN (Low)
	5	LKA switch signal
	6	-
	7	Ignition 1
	8	-
	9	L-CAN (High)
	10	C-CAN (High)
	11	Ground
	12	-
