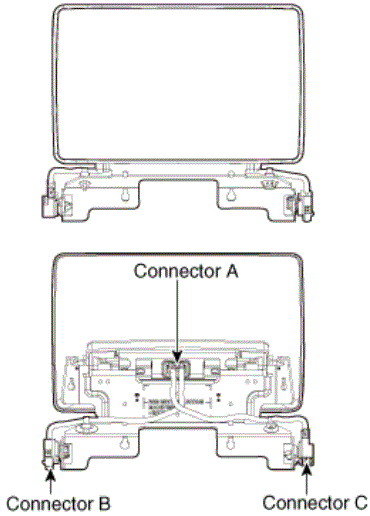

Rear Monitor: Components

Courtesy of HYUNDAI MOTOR AMERICA

View	Courtesy of HYUNDAI MOTOR AMERICA	View	Courtesy of HYUNDAI MOTOR AMERICA	View	Courtesy of HYUNDAI MOTOR AMERICA

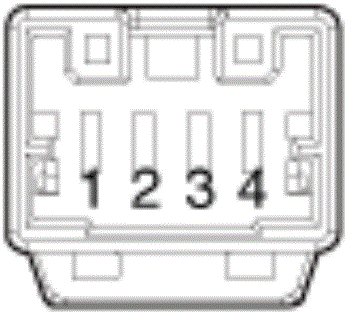

NO	Connector A	NO	Connector B	NO	Connector C
1	Rear Monitor Power	1	Ground	1	Rear Monitor Power
2	-	2	Rear Monitor Video	2	-
3	-			3	-
4	Rear Monitor Ground			4	Rear Monitor Ground
5	Rear Monitor Video
