Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel. (Refer to Steering System - "STEERING WHEEL ")

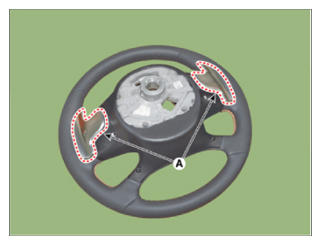

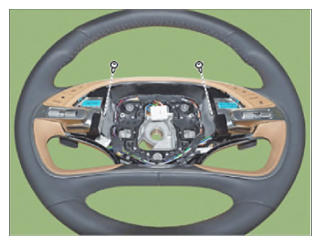

Loosen the mounting screws and remove the paddle shift (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

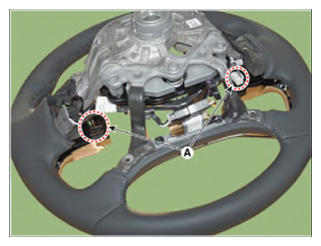

Disconnect the paddle shift connector and remove the paddle shift switch (A).

Courtesy of HYUNDAI MOTOR AMERICA

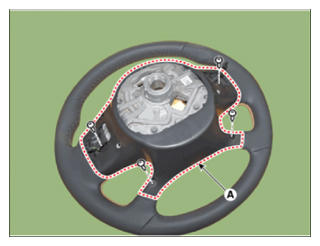

Loosen the mounting screws and remove the steering lower cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the steering wheel switch connector (A) and remove the steering wheel switch.

Courtesy of HYUNDAI MOTOR AMERICA
