Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the glove box housing cover.
(Refer to Body - "GLOVE BOX HOUSING COVER ")
Loosen the IBU mounting bolt, nuts and remove the IBU Unit.

Courtesy of HYUNDAI MOTOR AMERICA

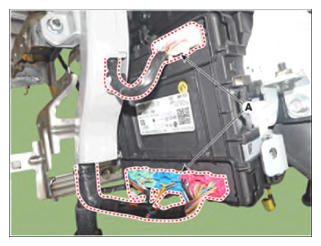

Disconnect the IBU connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA
