Power Trunk Module Diagnosis
›
DTC B24D0-00: Power Trunk Module Inline Mode Not Deactivated
›
Troubleshooting
›

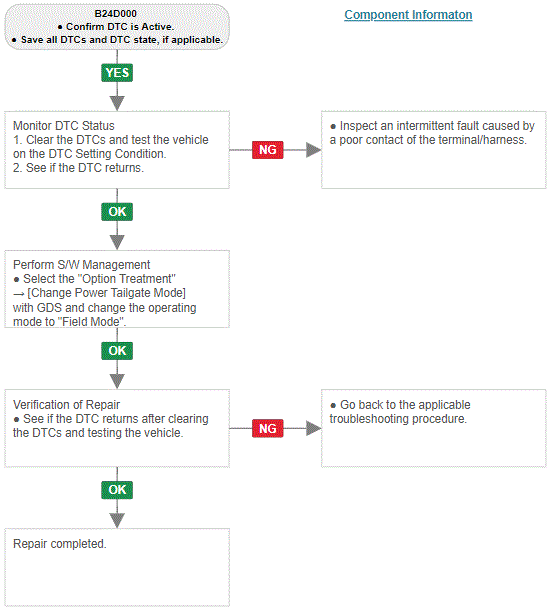

Diagnostic Flow-chart
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
