Repair Procedures: Inspection

  1. Remove the trunk inner switch.
  2. Check for continuity between terminals of the trunk inner switch.

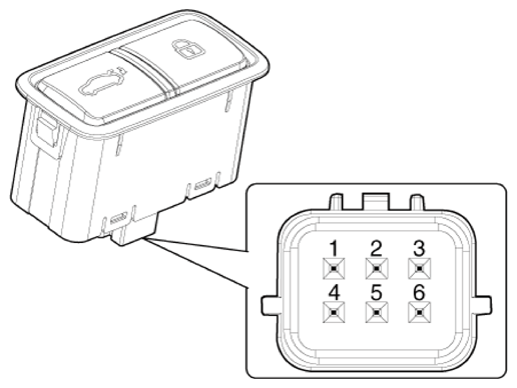

    G15554769Courtesy of HYUNDAI MOTOR AMERICA

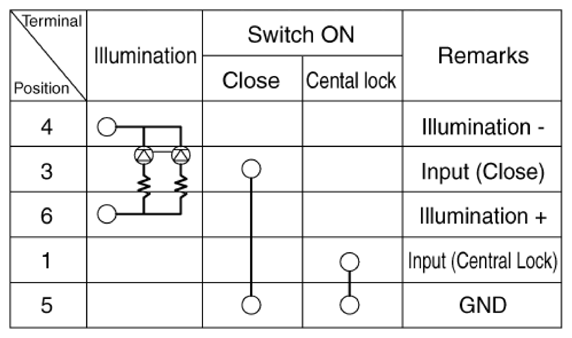

    G15554770Courtesy of HYUNDAI MOTOR AMERICA
