G80 2.5T Advanced, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Smart Key System
›
Smart Key Antenna
›
Repair Procedures
›
Removal
›
Interior Antenna 1
Interior Antenna 1
Disconnect the negative (-) battery terminal.
Remove the crash pad center panel. (Refer to Body - "
CRASH PAD CENTER PANEL
")

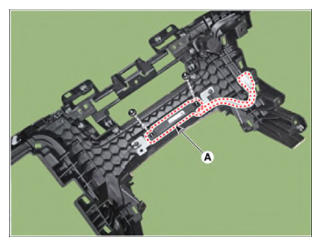

Loosen the mounting nuts and remove the interior antenna 1 (A).
Courtesy of HYUNDAI MOTOR AMERICA
