Interior Antenna 2

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console rear complete assembly. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

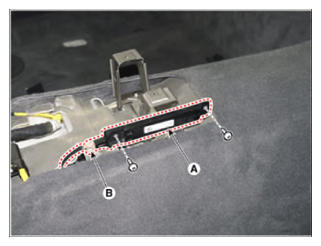

  3. Remove the interior antenna 2 (A) after loosening the mounting screws and disconnecting the connector (B).
    G15550061Courtesy of HYUNDAI MOTOR AMERICA
