Trunk Antenna
Trunk Antenna
Disconnect the negative (-) battery terminal.
Remove the luggage covering mat.

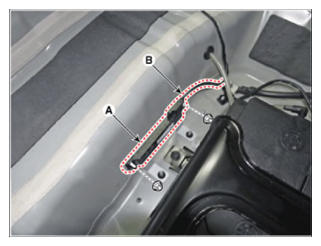

Remove the trunk antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
Courtesy of HYUNDAI MOTOR AMERICA
