Repair Procedures: Removal: Buzzer
Disconnect the negative (-) battery terminal.
Remove the front left wheel guide. (Refer to Body - "
FRONT WHEEL GUARD
")

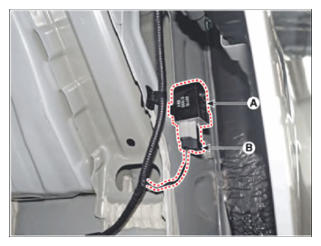

Remove the buzzer (A) after disconnecting the connector (B).
Courtesy of HYUNDAI MOTOR AMERICA
