Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

NOTE:

Take care not to bend or scratch the trim and panels.

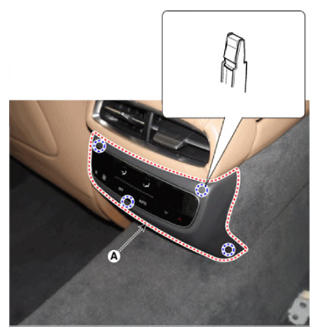

Remove the rear console cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

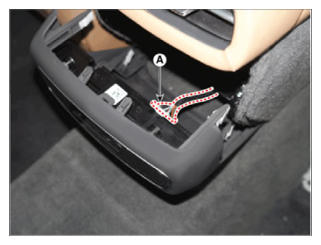

Press the lock pin, separate the rear console connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
