Power Window Switch
›
Repair Procedures
›
Removal
›
Power Window Main Switch
Power Window Main Switch
Disconnect the negative (-) battery terminal.
Remove the front door trim. (Refer to Body - "
FRONT DOOR TRIM
")

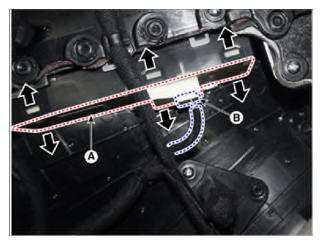

Remove the Power window switch (A) after loosening the mounting screws and disconnecting the connector (B).
Courtesy of HYUNDAI MOTOR AMERICA
