Overhead console Switch

  1. Disconnect the negative (-) battery terminal.

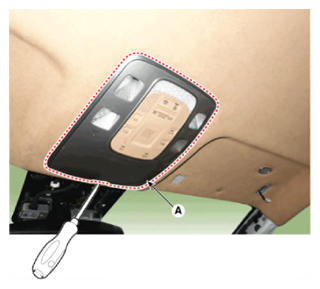

  2. Using a flat-tip screwdriver or remover, remove the overhead console (A).
    G15554742Courtesy of HYUNDAI MOTOR AMERICA

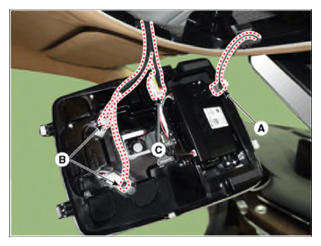

  3. Disconnect overhead console switch (A), (B) and (C).
    G15554743Courtesy of HYUNDAI MOTOR AMERICA
