Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
CAUTION:
- Wait at least 30 seconds after separating the cable.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the crash pad lower switch (A) after loosening the screw.

Courtesy of HYUNDAI MOTOR AMERICA

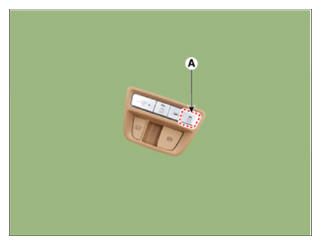

Remove the VDC OFF switch (A) after loosening the screw.

Courtesy of HYUNDAI MOTOR AMERICA
