Repair Procedures: Inspection
- Measure the output voltage between the terminal of the wheel speed sensor and the body ground.CAUTION:

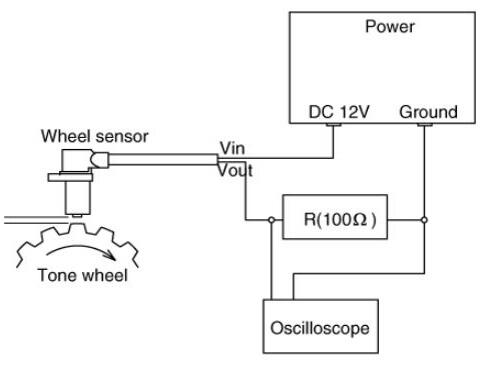

- To protect the wheel speed sensor when measuring the output voltage, a 100Ω resister must be used as shown in illustration below.

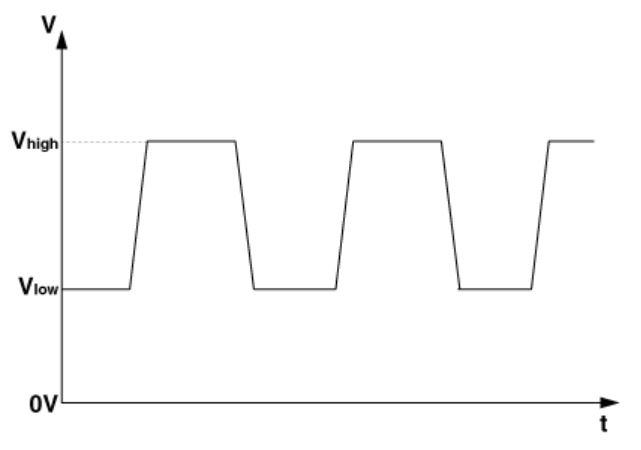

- Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown in illustration below.
V_low : 0.59V - 0.84V
V_high : 1.18V - 1.68V
Frequency range : 1 - 2, 500 Hz
