Repair Procedures: Inspection
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.

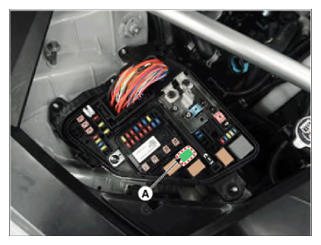

- Remove the fuse box cover an then remove the starter relay (A).

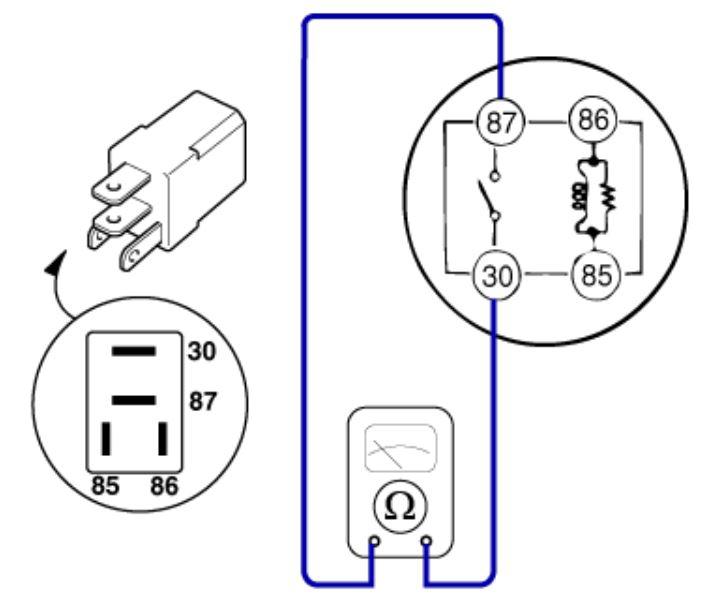

- Check for continuity between the terminals (30 and 87) using an ohmmeter.

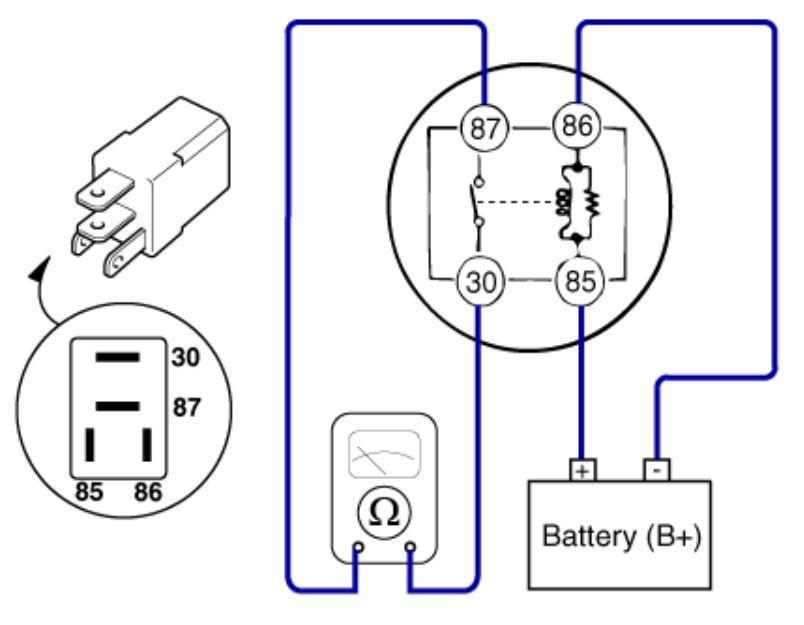

Terminal Resistance Measure 30-87 1MΩ or higher (Un limited) If there is continuity between the terminals, replace the relay. - Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
Terminal Resistance Measure 30-87 1Ω or less (Approx. 0Ω) If there is no continuity between the terminals, replace the relay. - Install the starter relay.
- Install the fuse box cove Calibration beam
