FixVault
Home
›
Genesis
›
2021
›
G80 2.5T Advanced, AWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Intake And Exhaust System - 2.5L
›
Intake Manifold
›
Components And Components Location
›
Components
Components And Components Location: Components

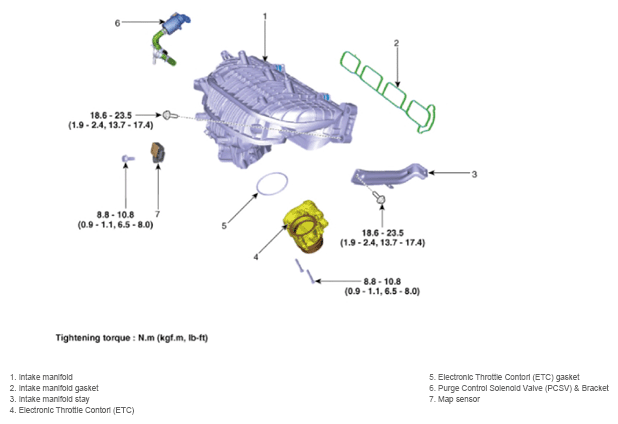

Fig 1: Intake Manifold Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
