G80 2.5T Advanced, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.5L
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagrams
›
Circuit Diagram
›

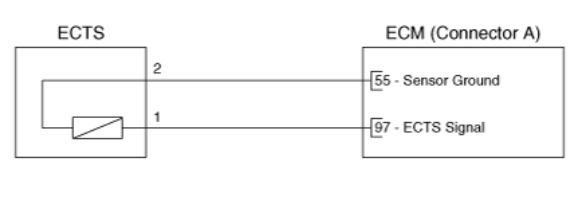

Engine Coolant Temperature Sensor (ECTS) - Water Temperature Control Assembly side
Engine Coolant Temperature Sensor (ECTS) - Water Temperature Control Assembly side
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
