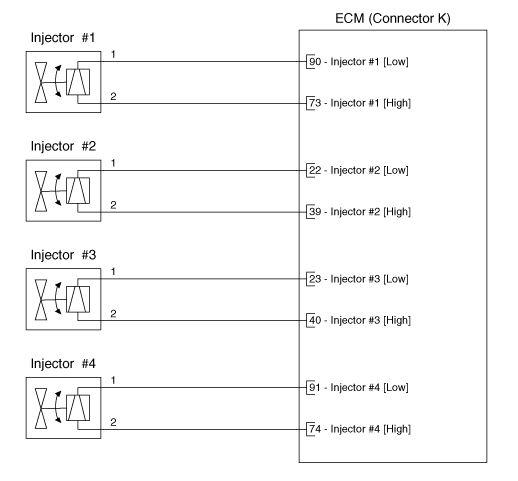

Home › Genesis › 2021 › G80 2.5T Advanced, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Injector › Schematic Diagrams › Circuit Diagram › GDI Injector
