Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON"
  4. Monitor "Ignition Output Value - Cyl 1 to 4" parameter in "Current Data" with GDS.

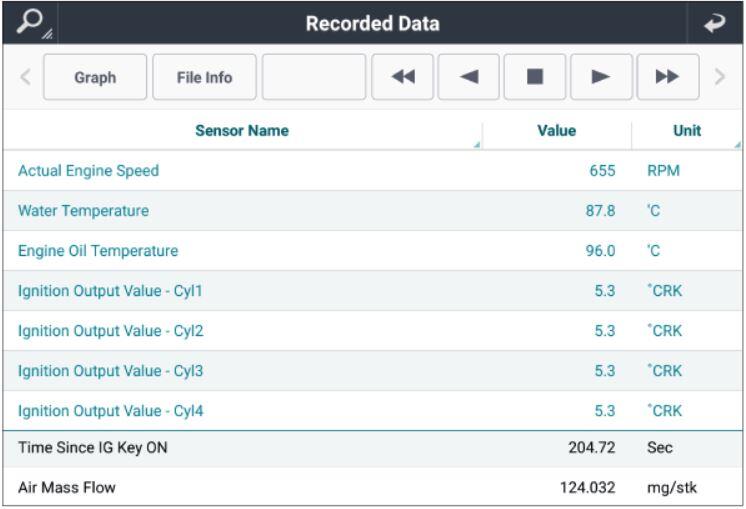

    Specification:  Refer to the illustration below

G15568234Courtesy of HYUNDAI MOTOR AMERICA
