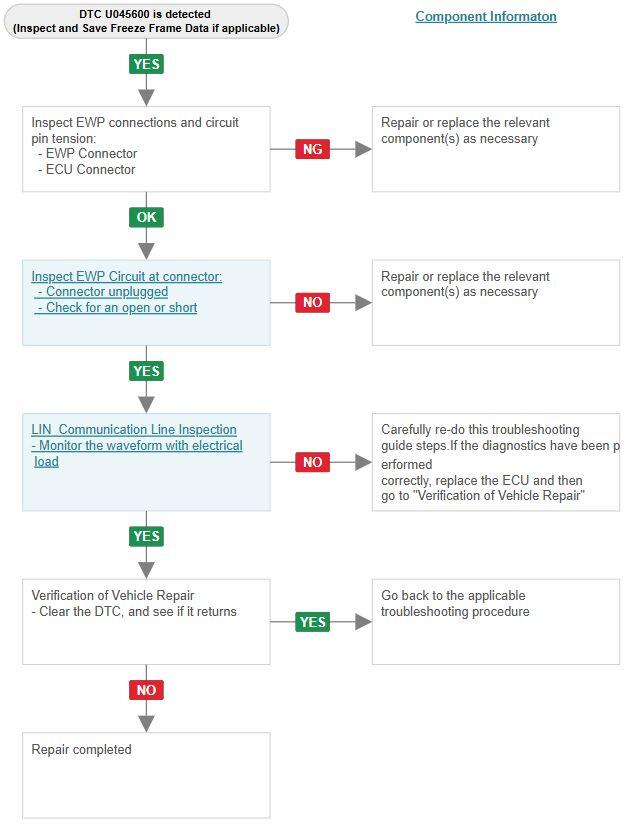

Home › Genesis › 2021 › G80 2.5T Advanced, AWD › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis - 2.5L (6 Of 6) › DTC U0456-00: Invalid Data Received From Coolant Temperature Control Module › Troubleshooting › Diagnostic Flow-chart
