Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

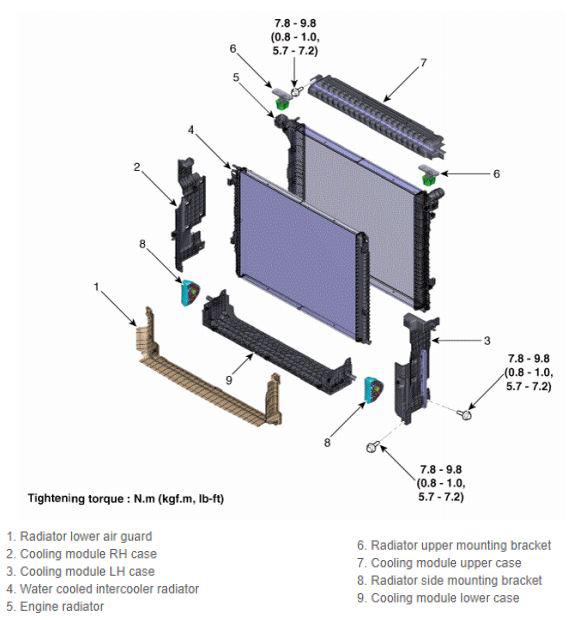

Fig 1: Radiator Components Location With Torque Specification
G15555818Courtesy of HYUNDAI MOTOR AMERICA

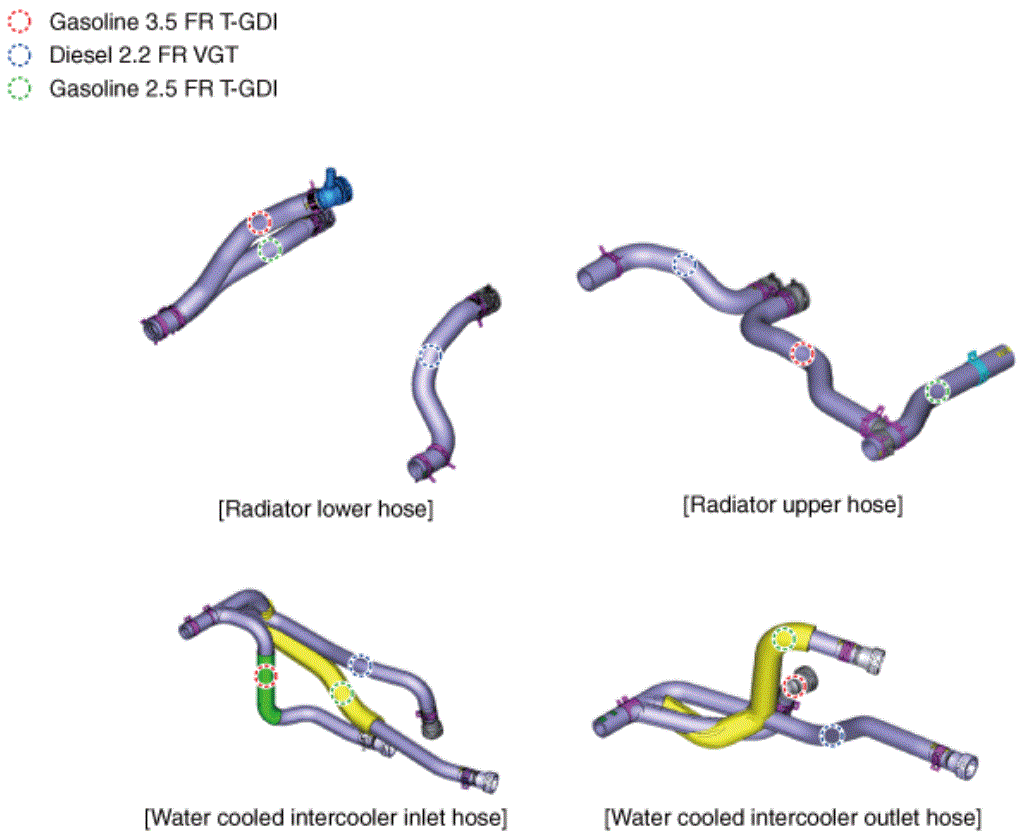

G15555819Courtesy of HYUNDAI MOTOR AMERICA
