Removal and Installation
- Disconnect the negative (-) battery terminal.
- Remove the rear package tray trim.
(Refer to Body (Interior and Exterior) - "REAR PACKAGE TRAY TRIM ")

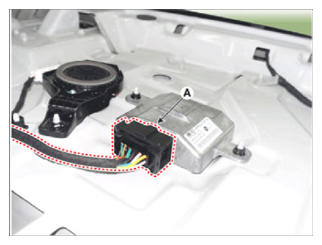

- Separate the PSB unit connector (A).

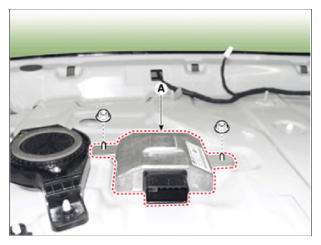

- Loosen the mounting bolts, remove the PSB unit (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- To install, reverse the removal procedure.
