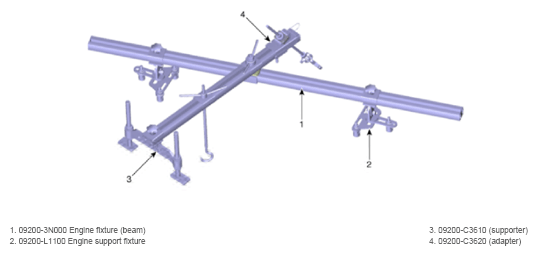

Engine Support Fixture Assembly Drawing

G15548505Courtesy of HYUNDAI MOTOR AMERICA

Information

When using the adapter (09200-C3620), check the 40° angle.

G15548506Courtesy of HYUNDAI MOTOR AMERICA
