Special Service Tools: Notes

Tool Name/Number	Illustration	Description

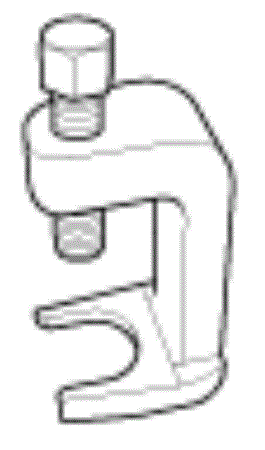

09568-2J100 Ball joint puller	Courtesy of HYUNDAI MOTOR AMERICA	Removal of the front lower arm, tie rod end
09568-4R100 Front upper arm ball joint remover	Courtesy of HYUNDAI MOTOR AMERICA	Removal of the front upper arm ball joint.
09200-3N000 Engine support fixture (beam)	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the front cross member. Used with the supporter (SST No.: 09200-L1100), adapter (SST No.: 09200-C3610), supporter (SST No.: 09200-C3620)
09200-L1100 Engine support fixture (supporter)	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the front cross member. Used with the beam (09200-3N000)
09200-C3610 Engine support fixture (Adapter)	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the front cross member. Used with the beam (09200-3N000)
09200-C3620 Engine support fixture (Supporter)	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the front cross member. Used with the beam (09200-3N000)
0K546-F6100 Strut nut installation/remover tool	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the front strut, rear shock absorber lock neglects type]
09546-3X100 Strut nut installation/remover tool	Courtesy of HYUNDAI MOTOR AMERICA	Removal and installation of the front strut, rear shock absorber lock nut.[None ECS type]
