Component Location

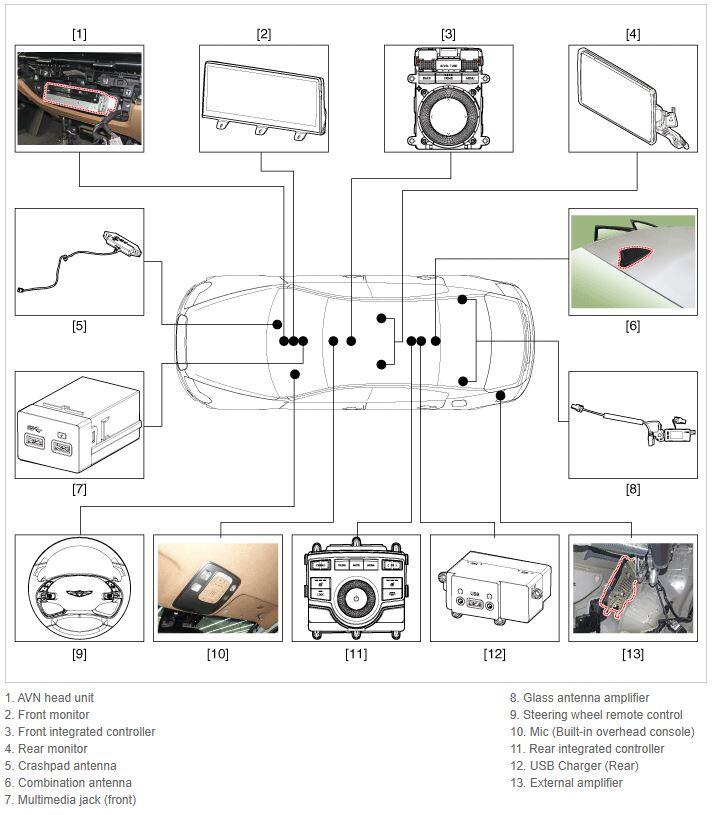

G15549949Courtesy of HYUNDAI MOTOR AMERICA
  1. AVN head unit
  2. Front monitor
  3. Front integrated controller
  4. Rear monitor
  5. Crashpad antenna
  6. Combination antenna
  7. Multimedia jack (front)
  8. Glass antenna amplifier
  9. Steering wheel remote control
  10. Mic (Built-in overhead console)
  11. Rear integrated controller
  12. USB Charger (Rear)
  13. External amplifier
