Components And Components Locations: Components

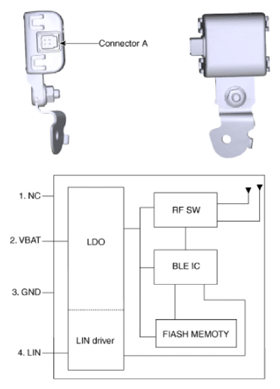

G15554933Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description
G14932234Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 Battery (+)
3 Ground
4 L1N
